Hikmicro Lynx S LE10S 10mm 256×192 12mic <35mK Thermal Monocular

Description

Hikmicro Lynx S LE10S 10mm 256×192 12mic <35mK Thermal Monocular

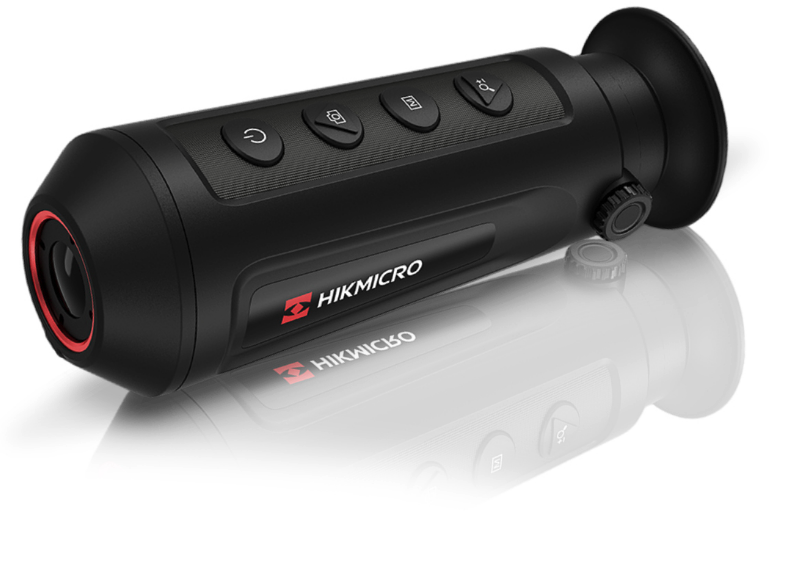

HIKMICRO LYNX S LE10S thermal monocular is equipped with a 256 × 192 infrared detector and an 800 × 600 OLED display. It supports functions of observation, distance measurement, hotspot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as hunting, hiking, searching and rescuing, etc.

Key Features

* 256 × 192 Resolution, 12 μm, high sensitivity detector

* NETD less than 35 mK (@25°C, F# = 1.0)

* Adaptive AGC, DDE, 3D DNR

* 800 × 600 Resolution 0.32-inch OLED display

* Built-in rechargeable lithium battery

* Up to 8 hours continuous running

* Supports hotspot Specification Thermal Module

* Image Sensor: VOx Uncooled Focal Plane Arrays

* Max. Resolution: 256 × 192 * Frame Rate: 50 Hz

* Pixel Interval: 12 μm * Response Waveband: 8 μm to 14 μm

* NETD: Less than 35 mK (@25°C, F# = 1.0)

* Lens (Focal Length): 9.7 mm, F1.0

* Focus Mode: Focus Free

* Detection Range: 500 m

* Min. Focusing Distance: 4 m

* Magnification: 1.5× to 12.0× (8×)

* Field of View(H × V), Degrees / m @100 m: 18.0° × 13.6° / 31.7 m × 23.8 m Image Display

* Display: 800 × 600, 0.32-inch, OLED

* Palettes: Black Hot, White Hot, Red Hot, Fusion

* FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

* Exit Pupil: 20 mm

* Eye Relief: 6 mm * Diopter (Range): -5D to +4D

* Brightness Adjustment: Yes

* Tone Adjustment: Cold, Warm

* Contrast Adjustment: Yes System

* Record Video: Yes

* Capture Snapshot: Yes

* Audio Recording: Yes

* Standby Mode: Yes * Storage: Built-in memory module (8 GB) * PIP: Yes * Hotspot: Yes * Hot Track: Yes * Distance Measurement: Yes Power Supply * Battery Type: Rechargeable Lithium Battery * Battery Operating Time: 8 hours continuous running with hotspot function off (@25°C), 6 hours continuous running with hotspot function on (@25°C) * Type-C Power Supply: DC 5 V/2 A * Supports External Power Supply General * Protection Level: IP67 * Dimension: 158.3 mm × 61 mm × 57 mm (6.23” × 2.40” × 2.24”) * Working Temperature: – 20°C to 55°C (-4°F to 131°F) * Weight: 260 g (0.57 lbs)
